Series MAC-S

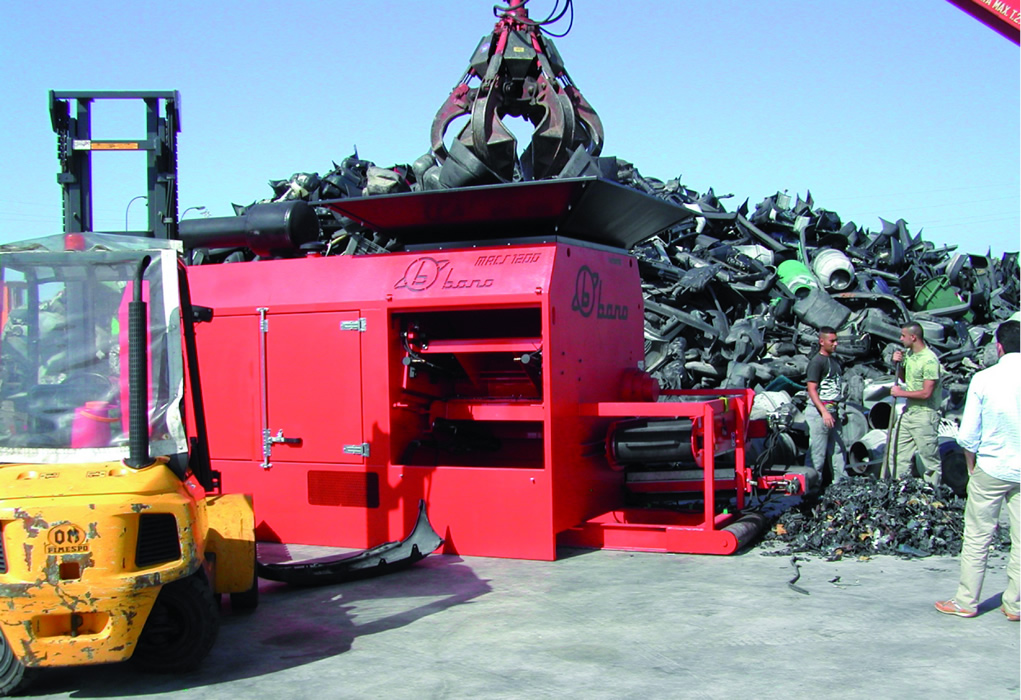

Single-shaft shredder (Model MAC-S)

Hydraulic or mechanically driven, the MAC-S shredders are successfully used for the treatment and size reduction of a wide variety of wastes; assuring a final precise size.

Our slow-speed single-shaft shredders have universal use, are suitable for shredding urban and industrial wastes and other materials as plastic materials, bulky waste, electric cables, electronic appliances (WEEE), wood, tyres.

High performances with low energy requirements and low operating costs are guaranteed by the exclusive Bano cutting system and by the different rotor designs specific for every kind of application.

Advanced technology, long experience in the field

Series MAC-S
  • Mechanical transmission
  • Sliding hopper bottom for safe, quick and comfortable maintenance
  • Interchangeable and reversible blades and counter-blades for quick and economic replacement
  • Interchangeable blade supports and counter-blades
  • Safety clutch system (only mechanical version)
  • Pusher to increase production
  • Active Protection system for bearings
  • Interchangeable screen with different size holes
  • Patented rotors design, studied to increase performances
  • Anti-vibrating support system
  • Light Metals
  • Heavy plastics (plastic lumps, pipes etc.)
  • Wood
  • Paper and cardboard
  • Electrical cables
  • Urban solid wastes (MSW)
  • WEEE
  • Bulky materials
  • Cans
  • Tyres
Shredder model Lenght rotor (mm) Rotor diameter (mm) Blades (mm) Power (KW) Weight (Ton)
MAC-S 12-50 1200 500 43 x 43 – 60 x 60 75 – 132 9,2
MAC-S 16-50 1600 500 43 x 43 – 60 x 60 75 – 132 13
MAC-S 20-50 2000 500 43 x 43 – 60 x 60 – 80 x 80 75 – 132 17
MAC-S 18-70 1800 700 43 x 43 – 60 x 60 – 80 x 80 – 120 x 120 132 – 250 19
MAC-S 22-70 2200 700 43 x 43 – 60 x 60 – 80 x 80 – 120 x 120 250 – 315 20
MAC-S 28-70 2800 700 60 x 60 – 120 x 120 250 – 315 21
MAC-S 35-80 3500 800 80 x 80 315 30
